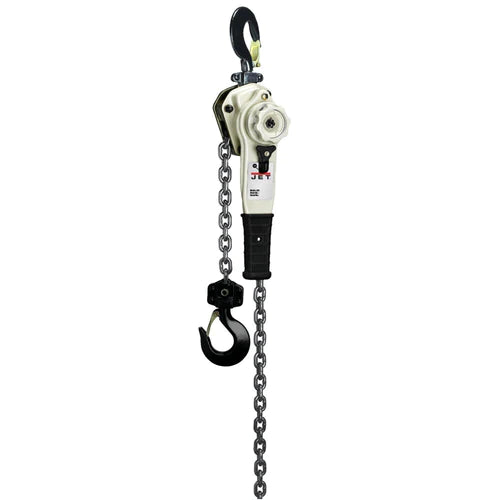

HOIST CHAIN 1-ton
FEATURES:
• Safety
• Patented Fused Brake Design- Proven durability that increases safety with a lifetime replacement warranty
• Weston Style Dual Pawl Brake System- Double pawl design increases safety
• Alloy Steel Hooks- Industrial rated hooks rotate 360 degrees for easy rigging. Hooks slowly stretch to indicate an overload situation increasing jobsite safety
• Durability
• Caged Needle Bearing Design- Increases efficiency and promotes smooth operation extending the work life of the hoist
• Cast Steel Safety Latches- Increased durability with heavy duty safety latches secured with Allen screws and lock nuts
• Heat Treated Load Plates- Heat treated, case hardened and corrosive resistant coated internal parts extend the life of the hoist in the harshest of environments
• Grade 100 Load Chain- Corrosive resistant grade 100 load chain is stronger than grade 80 load chain extending the life of the hoist
• All Steel Construction- Impact resistant covers that provide durability and protection
SPECIFICATIONS:
• Number of Falls: 1
• Lift per Turn (In.): 1-1/8
• Load Capacity (Tons): 1
• Load Chain Dimensions (Mm.): 5.6 x 15.7
• Lever Pull Force (LBF): 79
• Weight (Lbs.): 18
• Ship Yard Hooks: SV_1375591258806
• Lift (Ft.): 15
• Headroom (In.): 11-4/5
• Handle Length (In.): 9-5/8
• Load Capacity (Metric Tons): 1.0
• Overload Protection: No
JET® JLH Series Lever Hoists incorporate safety, durability, and heavy duty construction for operation in severe industrial environments. Safety features such as optional overload protection prevents the lever hoist from lifting or pulling damaging loads beyond its rated capacity. The JET® exclusive innovation showcased in the patented fused brake system reduces maintenance costs and limits downtime. JET® is so confident in the durability of the fused brake design we back it with an industry leading lifetime replacement warranty. JET® also offers the option of shipyard hooks, virtually eliminating stretched hooks caused by point or tip loading. The JET® JLH is available in ¼ ton to 9 ton capacities, with standard lifts of 5, 10, 15, and 20 feet (custom lifts available). Whether it’s inverted, vertical, horizontal, or any other load angle, the JET® JLH lever hoist is the solution for your heavy duty industrial needs.
